CUTANA™

CUTANA™ Fragmented Controls for DNA Methylation Sequencing

$175.00
SKU: 14-1804
Pack Size: 1 Set
Or
Email to Your Purchasing Agent

Description

The CUTANA™ Fragmented Controls for DNA Methylation Sequencing set includes pre-fragmented methylated pUC19 and unmethylated Lambda DNA controls optimized for assessing cytosine conversion efficiency in Enzymatic Methyl-seq (NEB® EM-seq™) when performed downstream of meCUT&RUN and Multiomic CUT&RUN workflows (CUT&RUN-EM). EM-seq is the preferred method for achieving base-pair resolution of 5-methylcytosine (5mC) from CUT&RUN DNA libraries. In traditional EM-seq, cytosine conversion controls are fragmented through sonication after mixing with genomic DNA. When CUT&RUN is used prior to EM-seq to excise chromatin regions of interest, pre-fragmented pUC19 and Lambda controls are required.

CUTANA Fragmented Controls for DNA Methylation Sequencing provides a reliable and easy-to-use solution for validating conversion rates and optimizing methylation sequencing protocols in cutting-edge epigenomics experiments.

Validation Data

14-1804-dna-fragment-size (Click to enlarge)

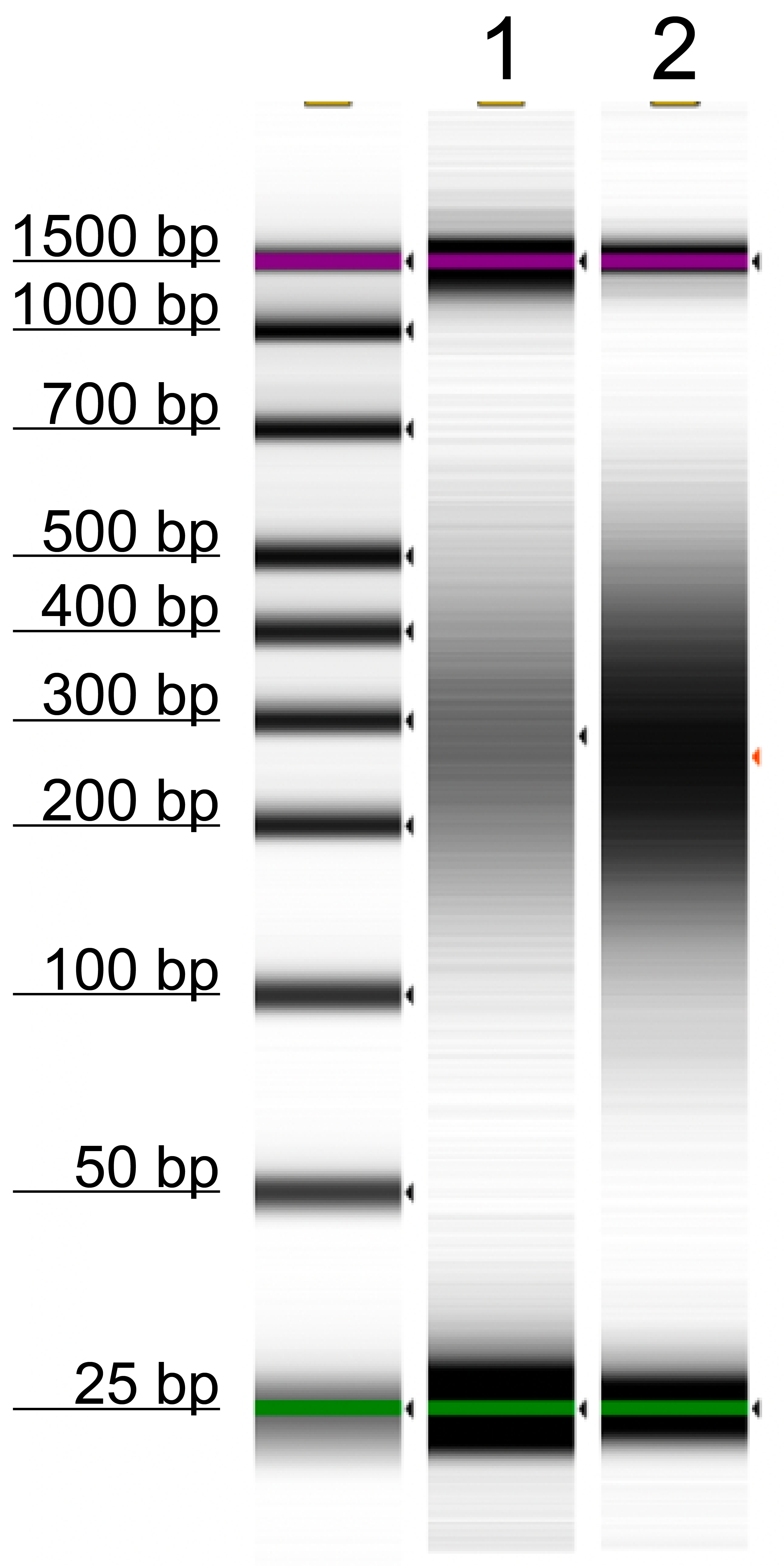

Figure 1: Control DNA fragment size
Agilent TapeStation® confirms fragmentation of pUC19 (Lane 1, 0.2 ng) and Lambda (Lane 2, 4 ng) control DNAs to target size of 200-400 bp.

14-1804-conversion-efficiency (Click to enlarge)

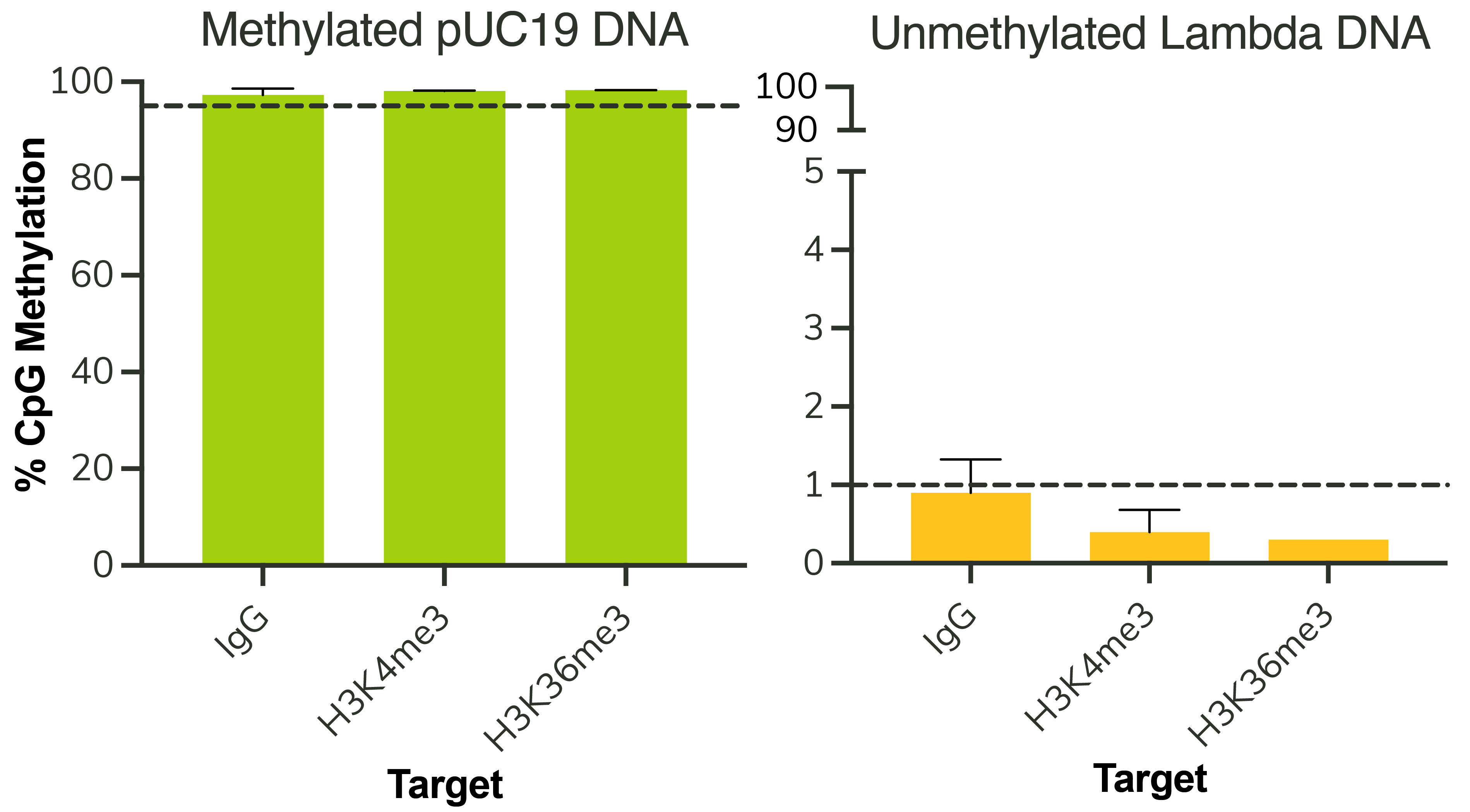

Figure 2: Representative EM-seq conversion efficiency
CUT&RUN-EM was performed as described in Figure 3. Across multiple CUT&RUN targets, methylated pUC19 control DNA shows >95% methylated CpGs, as expected. Unmethylated Lambda control DNA shows <1% DNA methylation, indicating >99% EM-seq conversion efficiency.

14-1048-CRGWH (Click to enlarge)

Figure 3: CUT&RUN-EM methods
CUT&RUN-EM was performed using CUTANA™ Fragmented Controls for DNA Methylation Sequencing and the CUTANA™ ChIC/CUT&RUN Kit (EpiCypher 14-1048) starting with 500k K562 cells and 0.5 µg of IgG (EpiCypher 13-0042), H3K4me3 (EpiCypher 13-0060), or H3K36me3 (EpiCypher 13-0058) antibodies. Library preparation was performed with 1 ng of DNA using the NEBNext® Enzymatic Methyl-seq v2 Kit (NEB E8015). Libraries were run on an Illumina NextSeq2000 with paired-end sequencing (2x50 bp). Sample sequencing depth was 31.5 million reads (IgG), 21.3 million reads (H3K4me3), and 20.6 million reads (H3K36me3). Data were aligned to the hg38 genome using Bowtie2. Data were filtered to remove duplicates, multi-aligned reads, and ENCODE DAC Exclusion List regions. Validation data are representative where noted.

Set Contents

Item Cat. No. QTY
CUTANA™ CpG Methylated pUC19 Fragmented Control DNA 18-8001-05 20 µL
CUTANA™ CpG Unmethylated Lambda Fragmented Control DNA 18-8002-05 20 µL
CUTANA™ 0.1X TE Buffer 21-1025-05 2 x 2 mL

Recommended Accessory Products

APPLICATION ITEM CAT. NO.
meCUT&RUN CUTANA™ meCUT&RUN Kit for DNA Methylation Sequencing 14-1060-24
Multiomic CUT&RUN CUTANA™ Multiomic CUT&RUN Controls Set 14-1802
Multiomic CUT&RUN CUTANA™ ChIC/CUT&RUN Kit 14-1048/14-1048-24

Technical Information

Storage
OPEN KIT IMMEDIATELY and store components at room temperature and -20°C as indicated. Stable for 6 months upon date of receipt.

Application Notes

Perform meCUT&RUN (EpiCypher 14-1060-24) or Multiomic CUT&RUN (EpiCypher 14-1802). Follow instructions for adding CUTANA Fragmented Controls as outlined in each respective user manual (linked below under Documents & Resources). In brief:

  • Transfer 1 ng CUT&RUN DNA to a new tube and adjust final volume to 49 µL with 0.1X TE Buffer. If CUT&RUN yields are < 1 ng, use the total amount of recovered DNA.
  • In a fresh tube, combine 1 µL Methylated pUC19 DNA and 1 µL Unmethylated Lambda DNA with 98 µL 0.1X TE Buffer.
  • Add 1 µL of the combined diluted Fragmented Control DNAs to the 49 µL of CUT&RUN DNA.

This diluted DNA will be the input for EM-seq conversion and library prep using the NEBNext® Enzymatic Methyl-seq v2 Kit (NEB E8015). Follow the EM-seq protocol adjustments as outlined in the meCUT&RUN or Multiomic CUT&RUN user manuals.
