Nucleosome, Recombinant Human, H2AK119ub1 dNuc, Biotinylated

$525.00
SKU: 16-0395
Pack Size: 25 µg
Nucleosome, Recombinant Human, H2AK119ub dNuc, Biotinylated Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2B-O60814; H3.1-P68431; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H2A (created by a proprietary semi-synthetic method) contains ubiquitin-lysine at position 119. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147-base pair sequence that has high affinity for histone octamers, is useful for nucleosome assembly, and contains a 5’ biotin-TEG group.

Nucleosome, Recombinant Human, H2AK119ub dNuc Biotinylated Formulation: Nucleosome, Recombinant Human, H2AK119ub (14.4 μg protein weight, 25 μg DNA+protein) in 10 mM Tris HCl, pH 7.5, 25 mM NaCl, 1 mM EDTA, 2 mM DTT, 20% glycerol. MW = 216,953.5 Da.

Nucleosome, Recombinant Human, H2AK119ub dNuc, Biotinylated Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H2AK119ub dNuc, Biotinylated Application Notes: Nucleosome, Recombinant Human, H2AK119ub dNucs are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments.

References: Lowary PT and J Widom (1998). J Mol Biol 276: 19-42. Luger K et al (1999). Methods Mol Biol 119: 1-16.


View technical datasheet for this product. 16-0395 Datasheet
16-0395 Western Blot Data

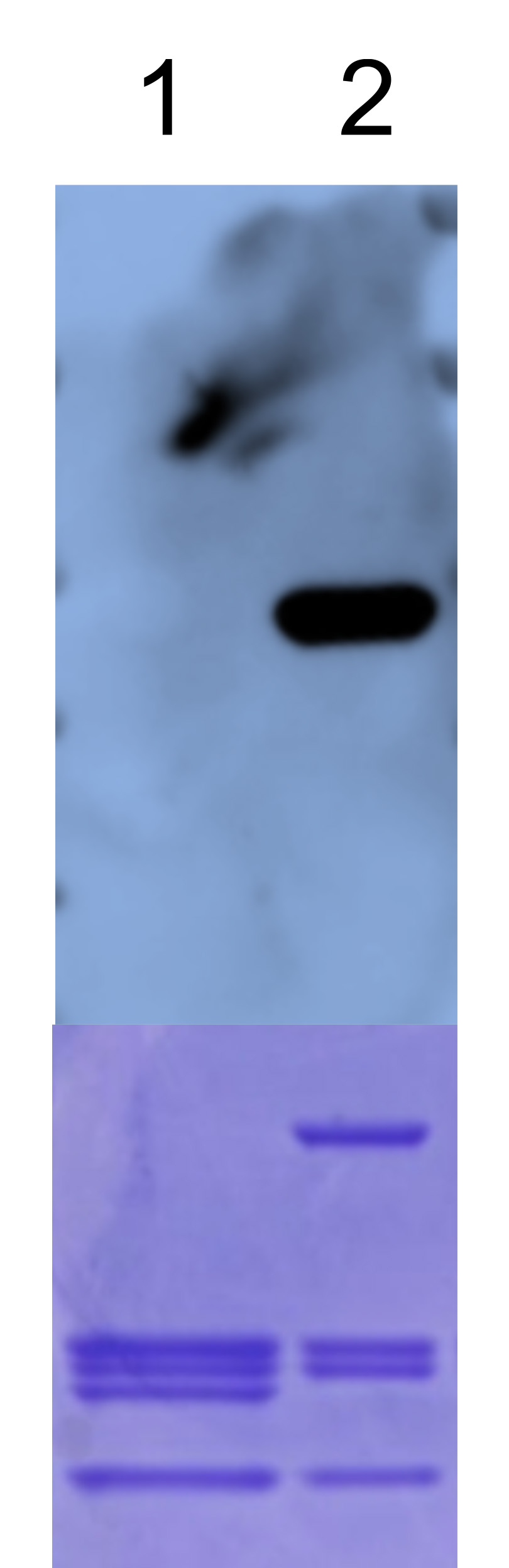

Western Blot Data:Western Analysis of Nucleosome, Recombinant Human, H2AK119ub. Top Panel: Unmodified H3 (Lane 1) and H2AK119ub containing nucleosomes (Lane 2) were probed with an anti-H2AK119ub antibody and analyzed via ECL readout. Only the H2AK119ub sample produced a detectable signal. Bottom Panel: Detail from Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H2AK119ub nucleosomes (Lane 2).
(Click image to enlarge)

16-0395 Mass Spec

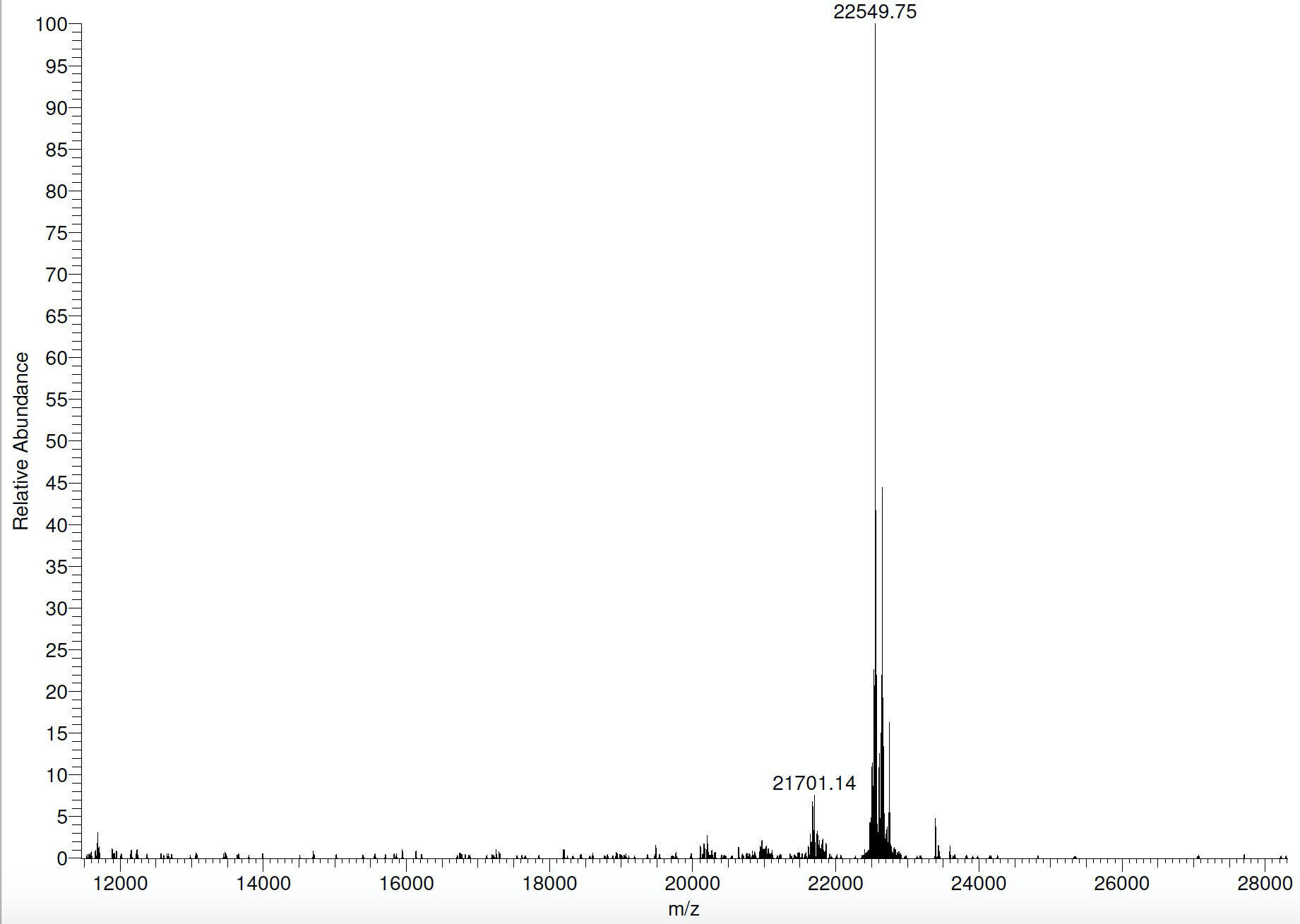

Mass Spec Data: H2AK119ub protein analyzed by high resolution mass spectrometry. Expected mass = 22,551 Da. Determined mass = 22,549.75 Da.
(Click image to enlarge)

16-0395 Protein Gel

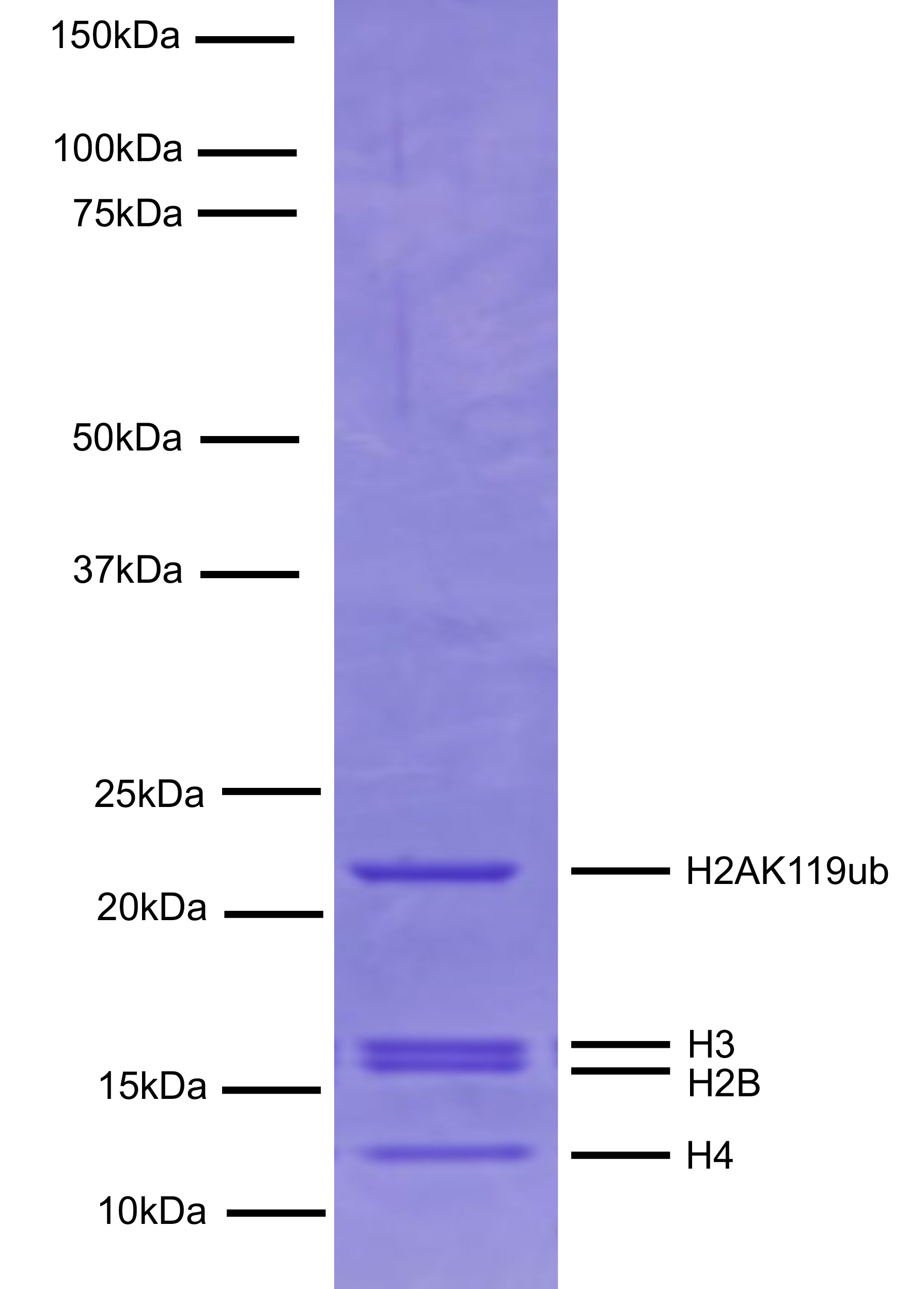

Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H2AK119ub (1 μg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2AK119ub, H2B, H3.1, and H4) are indicated.
(Click image to enlarge)

16-0395 Native PAGE Data

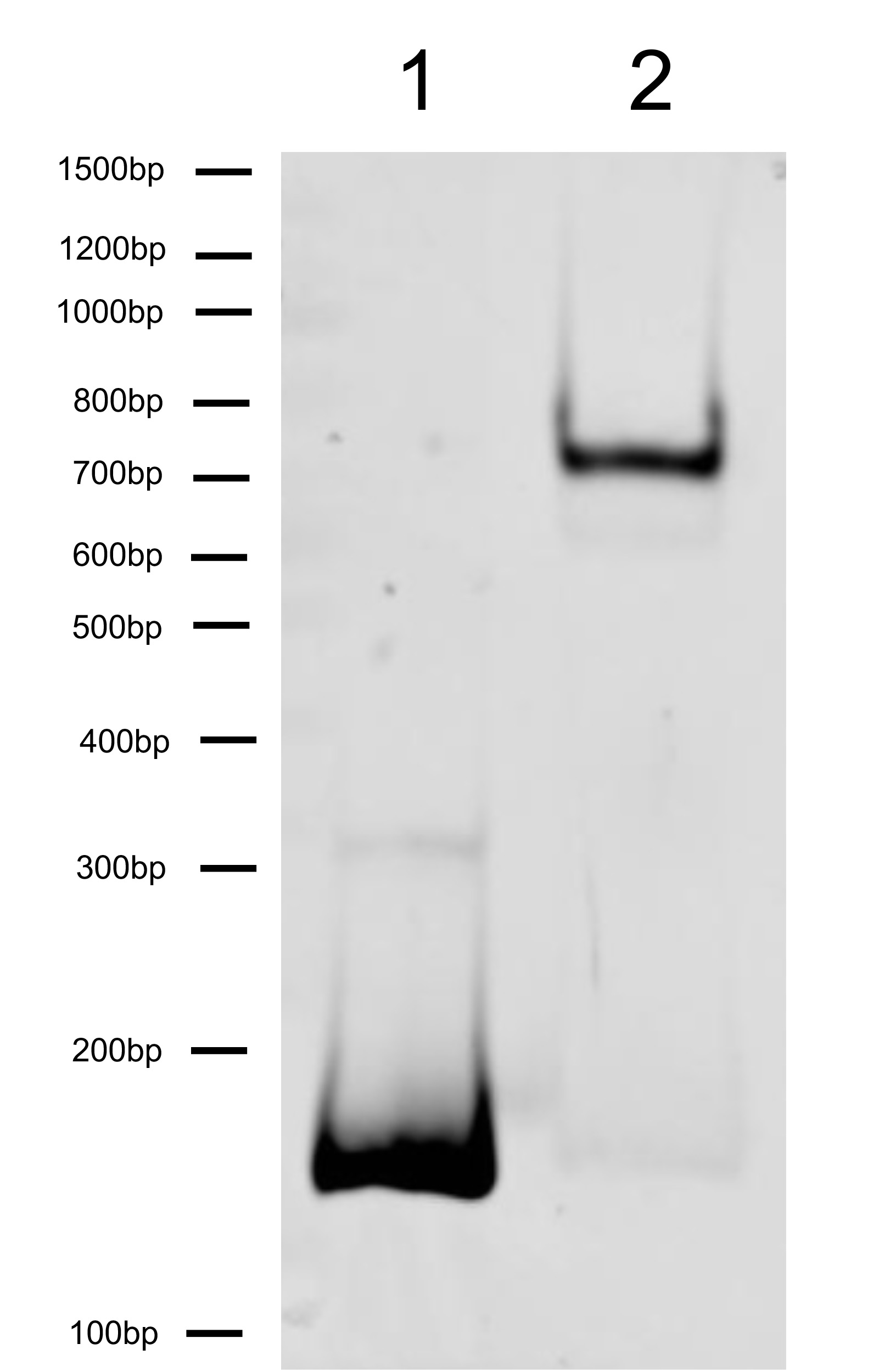

DNA Gel Data: Nucleosome, Recombinant Human, H2AK119ub dNucs resolved via native PAGE and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA (100 ng). Lane 2: Intact H2AK119ub nucleosome (400 ng).
(Click image to enlarge)

Current stock: 0
