Nucleosome,

Nucleosome, Recombinant Human, H3R17me1 dNuc, Biotinylated

$575.00
SKU: 16-0382
Pack Size: 50 µg
Nucleosome, Recombinant Human, H3R17me1 dNuc, Biotinylated Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2BO60814; H3.2-Q71DI3*; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H3 (created by a proprietary semi-synthetic method) contains monomethylated arginine at position 17. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147-base pair sequence that has high affinity for histone octamers and is useful for nucleosome assembly and contains a 5’ biotin-TEG group. *H3R17me1 also has a Cys to Ala substitution at position 110.

Nucleosome, Recombinant Human, H3R17me1 dNuc Biotinylated Formulation: Nucleosome, Recombinant Human, H3R17me1 (27.3 μg protein weight, 50 μg DNA+protein) in μl 10 mM Tris HCl, pH 7.5, 25 mM NaCl, 1 mM EDTA, 2 mM DTT, 20% glycerol. MW = 199,804.06 Da.

Nucleosome, Recombinant Human, H3R17me1 dNuc, Biotinylated Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H3R17me1 dNuc, Biotinylated Application Notes: Nucleosome, Recombinant Human, H3R17me1 dNucs are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments. Nucleosome, Recombinant Human, H3R17me1 dNucs from EpiCypher does not contain free DNA which could alter assayed activities.

References:
Lowary PT and J Widom (1998). J Mol Biol 276: 19-42.
Luger K et al (1999). Methods Mol Biol 119: 1-16.


View technical datasheet for this product. 16-0382 Datasheet
16-0382 Western Blot

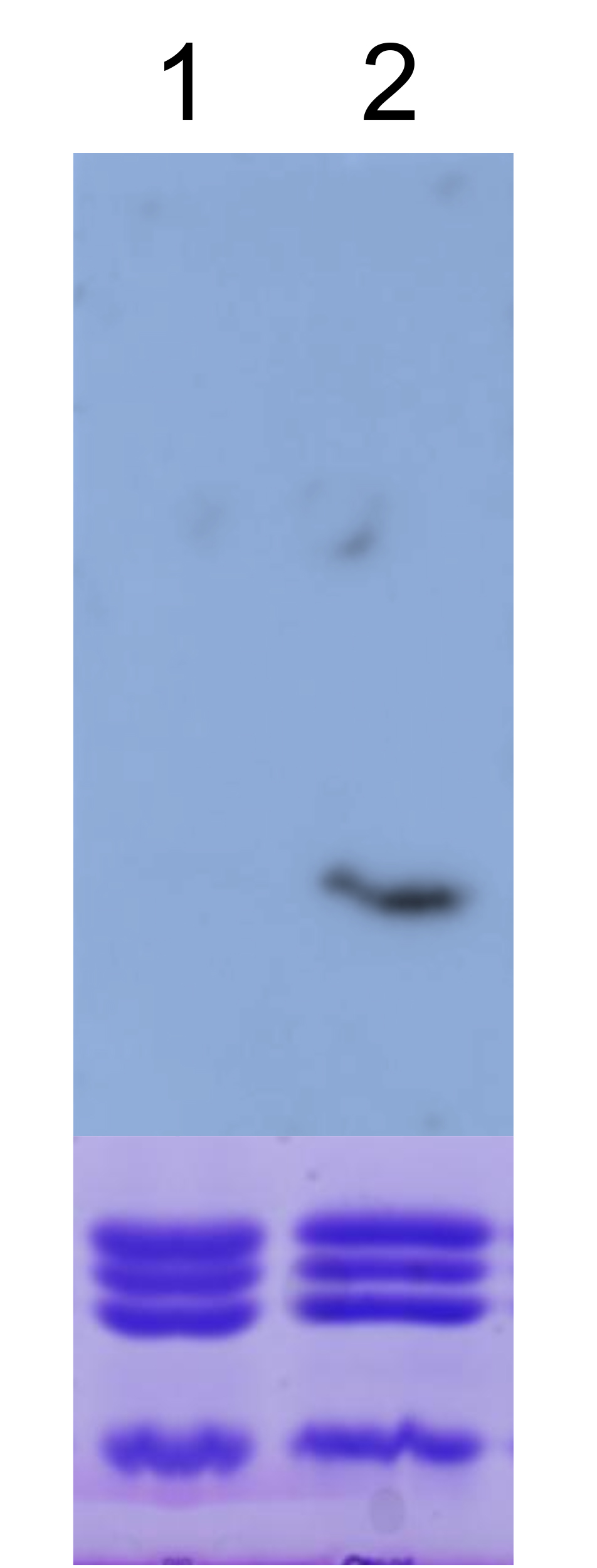

Western Blot Data:Western Analysis of Nucleosome, Recombinant Human, H3R17me1. Top Panel: Unmodified H3 (Lane 1) and H3R17me1 containing nucleosomes (Lane 2) were probed with an anti-H3R17me1 antibody and analyzed via ECL readout. Only the H3R17me1 sample produced a detectable signal. Bottom Panel: Detail from Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H3R17me1 nucleosomes (Lane 2).
(Click image to enlarge)

16-0382 MS Data

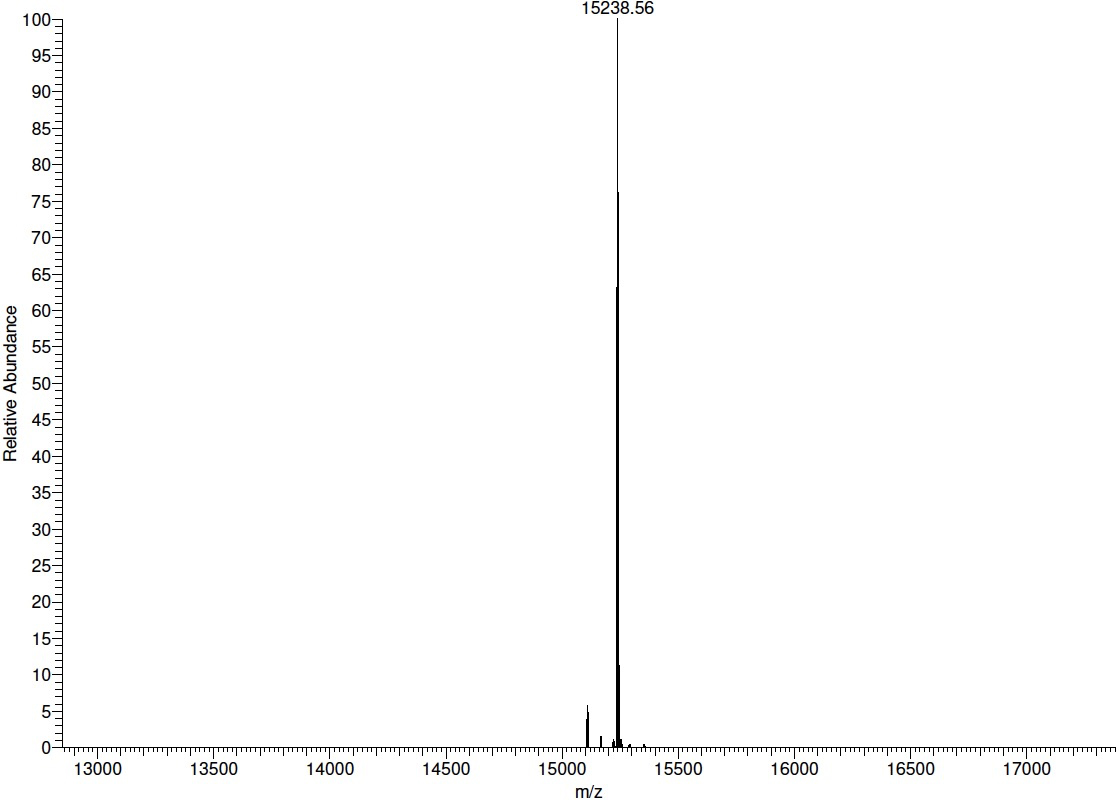

Mass Spec Data:H3R17me1 protein analyzed by high resolution mass spectrometry. Expected mass = 15,238.8 Da. Determined mass = 15,238.56 Da.
(Click image to enlarge)

16-0382 Protein Gel Data

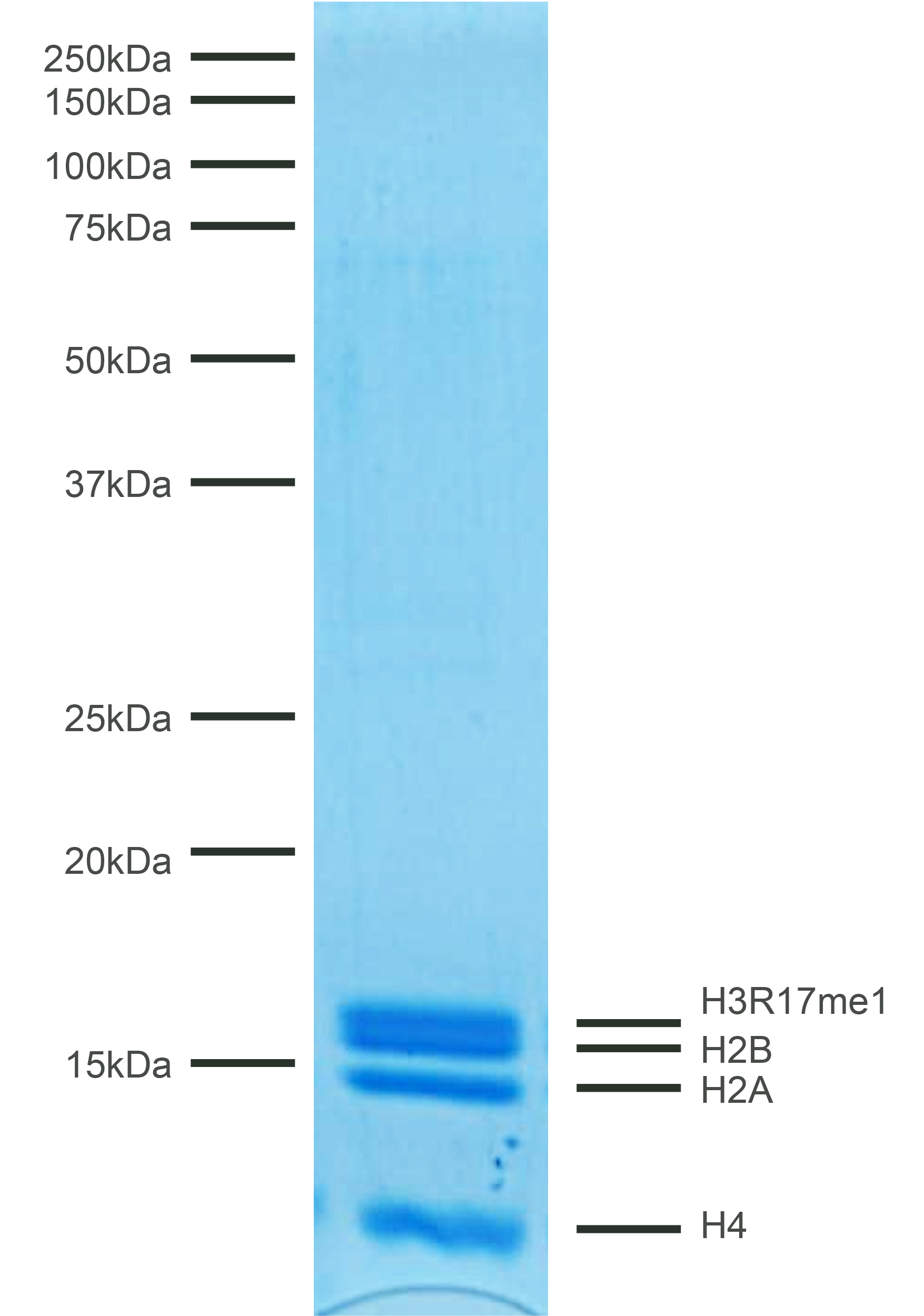

Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H3R17me1 (1 μg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2A, H2B, H3R17me1, and H4) are indicated.
(Click image to enlarge)

16-0382 DNA Gel Data

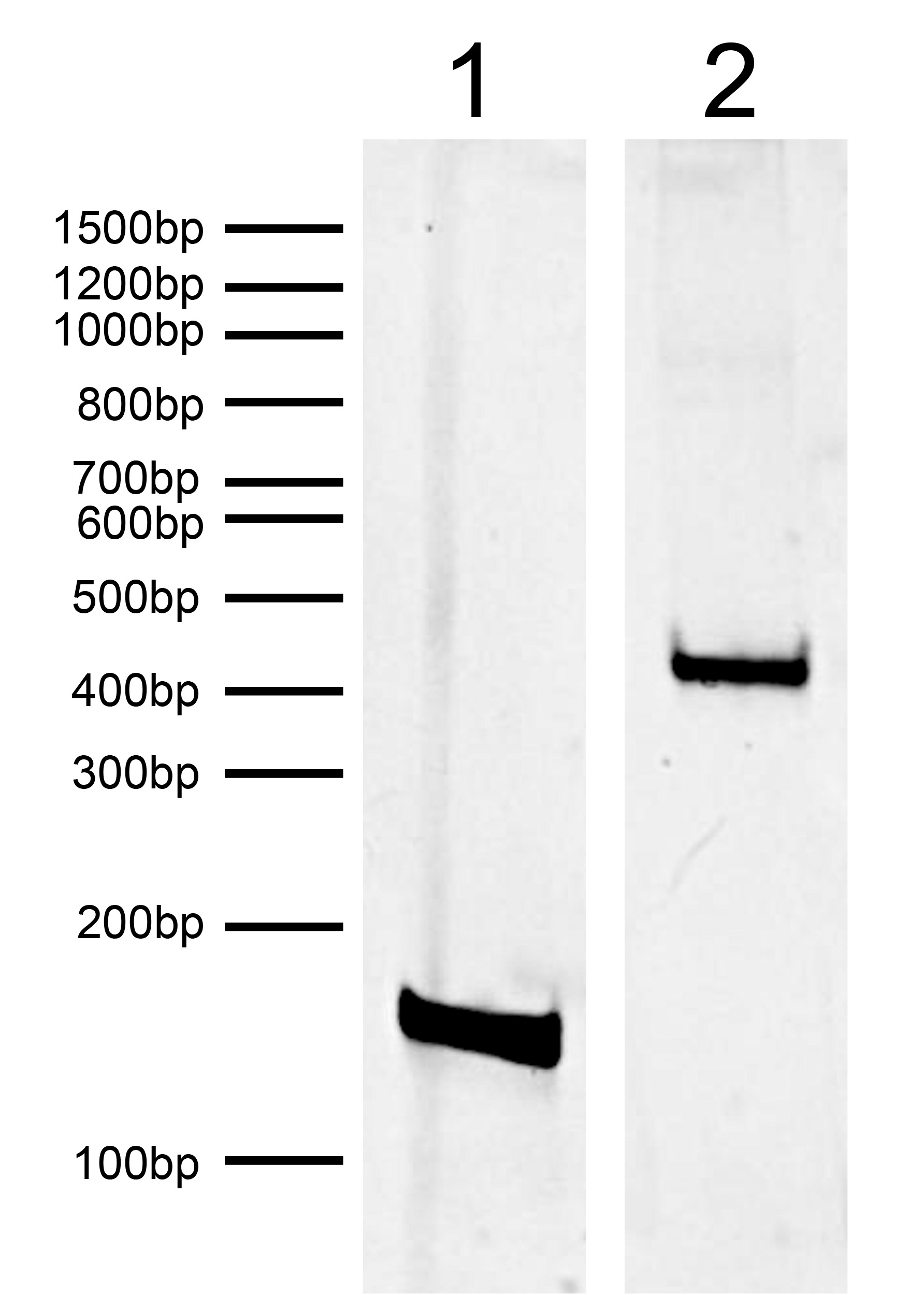

DNA Gel Data: Nucleosome, Recombinant Human, H3R17me1 run on a native PAGE gel and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA (100 ng). Lane 2: Intact nucleosomes (400 ng).
(Click image to enlarge)

Current stock: 0
